HRCore::Storage::Interface Class Reference

A class as a storage interface, pure virtual. More...

#include <StorageIF.hpp>

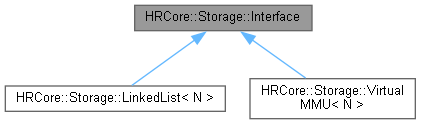

Inheritance diagram for HRCore::Storage::Interface:

Classes
struct	item_t
	Storage item descriptor. More...

Public Member Functions
virtual item_t	begin ()=0
	Return the first item of storage. More...
virtual item_t	end ()=0
	Returns the last item of storage. More...
virtual item_t	next (item_t cur)=0
	Get next item. More...
virtual item_t	prev (item_t cur)=0
virtual item_t	at (size_t pos)=0
	Access to storage[pos]. More...
virtual size_t	length ()=0
	Get the length of storage. More...
virtual bool	shrink (size_t len)=0
	Remove data from the end to shrink the size to a given length. More...
virtual bool	extend (size_t len)=0
	Extend the storage to a given length. More...
virtual Interface *	newObject ()=0
	Get a new object of same type. More...
virtual void	delObject (const Interface *ptr)=0
	Delete a object from newObject() More...

Detailed Description

A class as a storage interface, pure virtual.

Definition at line 28 of file StorageIF.hpp.

Member Function Documentation

at()

virtual item_t HRCore::Storage::Interface::at ( size_t  pos )

pure virtual

Access to storage[pos].

Parameters

pos	The index of item, starting from 0.

Returns

item_t

Implemented in HRCore::Storage::VirtualMMU< N >, and HRCore::Storage::LinkedList< N >.

begin()

virtual item_t HRCore::Storage::Interface::begin ( )

pure virtual

Return the first item of storage.

Returns

item_t The first item.

Implemented in HRCore::Storage::LinkedList< N >, and HRCore::Storage::VirtualMMU< N >.

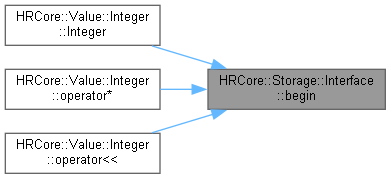

Here is the caller graph for this function:

delObject()

virtual void HRCore::Storage::Interface::delObject ( const Interface *  ptr )

pure virtual

Delete a object from newObject()

Parameters

ptr	The pointer of object to be deleted

Implemented in HRCore::Storage::LinkedList< N >, and HRCore::Storage::VirtualMMU< N >.

Here is the caller graph for this function:

end()

virtual item_t HRCore::Storage::Interface::end ( )

pure virtual

Returns the last item of storage.

Returns

item_t The last item.

Implemented in HRCore::Storage::LinkedList< N >, and HRCore::Storage::VirtualMMU< N >.

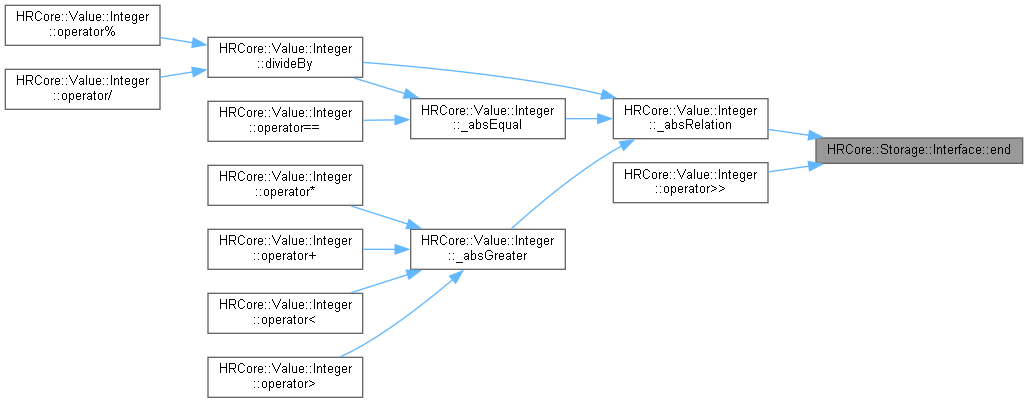

Here is the caller graph for this function:

extend()

virtual bool HRCore::Storage::Interface::extend ( size_t  len )

pure virtual

Extend the storage to a given length.

Parameters

len	Final length.

Returns

true if success

false if no space or ...

Implemented in HRCore::Storage::VirtualMMU< N >, and HRCore::Storage::LinkedList< N >.

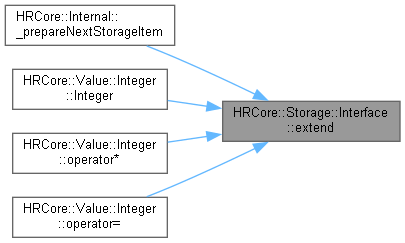

Here is the caller graph for this function:

length()

virtual size_t HRCore::Storage::Interface::length ( )

pure virtual

Get the length of storage.

Returns

size_t Length of storage

Implemented in HRCore::Storage::LinkedList< N >, and HRCore::Storage::VirtualMMU< N >.

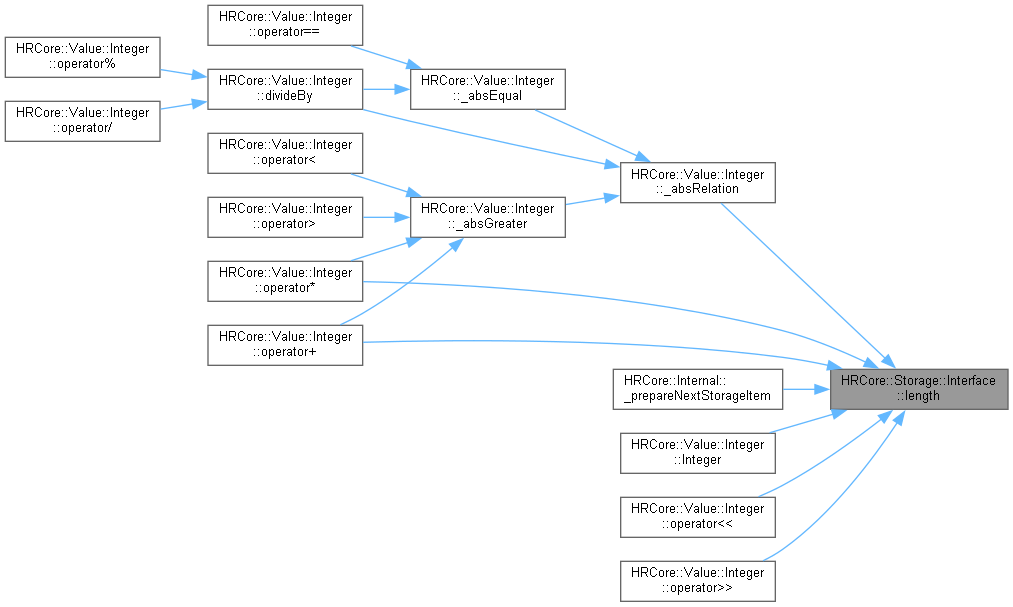

Here is the caller graph for this function:

newObject()

virtual Interface * HRCore::Storage::Interface::newObject ( )

pure virtual

Get a new object of same type.

Returns

Interface* The pointer of new object

Implemented in HRCore::Storage::LinkedList< N >, and HRCore::Storage::VirtualMMU< N >.

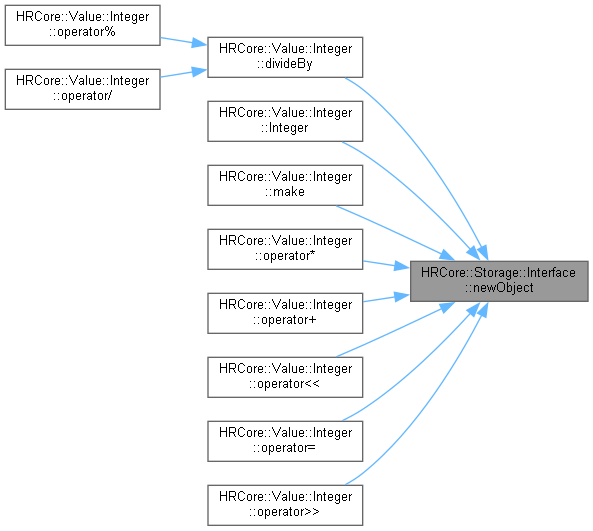

Here is the caller graph for this function:

next()

virtual item_t HRCore::Storage::Interface::next ( item_t  cur )

pure virtual

Get next item.

Parameters

cur	Current item.

Returns

item_t The next item.

Implemented in HRCore::Storage::VirtualMMU< N >, and HRCore::Storage::LinkedList< N >.

Here is the caller graph for this function:

prev()

virtual item_t HRCore::Storage::Interface::prev ( item_t  cur )

pure virtual

Parameters

cur	Current item.

Returns

item_t The previous item.

Implemented in HRCore::Storage::VirtualMMU< N >, and HRCore::Storage::LinkedList< N >.

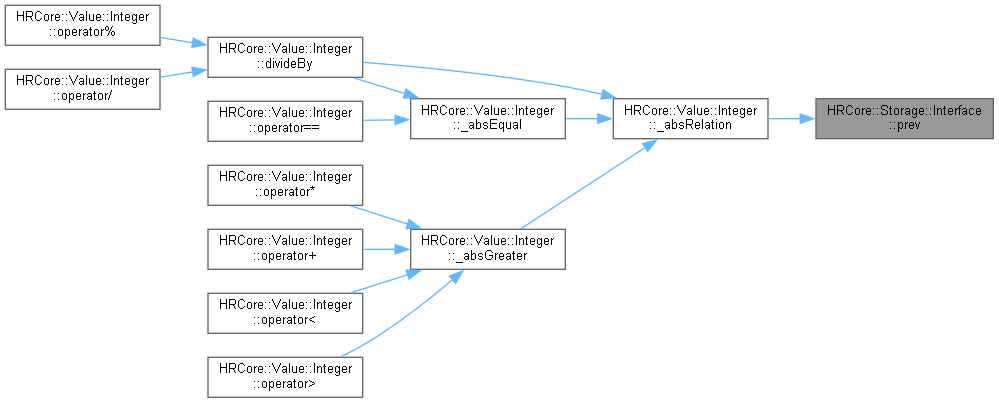

Here is the caller graph for this function:

shrink()

virtual bool HRCore::Storage::Interface::shrink ( size_t  len )

pure virtual

Remove data from the end to shrink the size to a given length.

Parameters

len	The length to be remained.

Returns

true if success

false if failed

Implemented in HRCore::Storage::VirtualMMU< N >, and HRCore::Storage::LinkedList< N >.

---

The documentation for this class was generated from the following file:

• inc/StorageIF.hpp
